Description

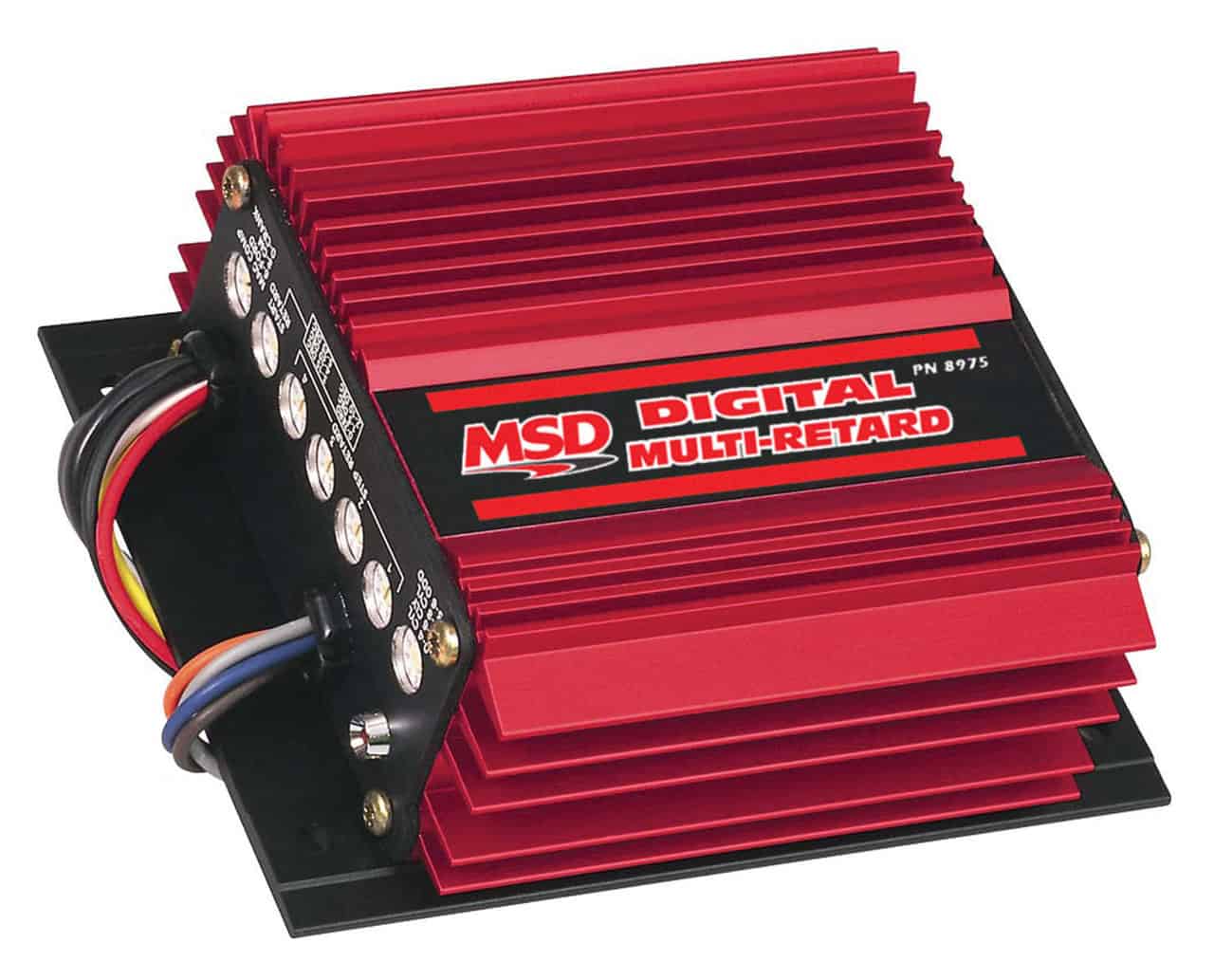

The Digital Multi-Retard provides four different stages of retard along with an adjustable start retard feature – all of this with no modules!
The MSD Multi-Retard uses a high speed RISC microcontroller to direct the timing functions. This controller can make extremely quick compensations to the timing while maintaining accuracy to within 1°. There is also an innovative Magnetic Pick-Up Compensation circuit built-in to allow for rock-steady timing with a variety of different mag pick-ups.
There are four separate retard stages that can be activated independently or together for a total sum of retards. Each stage is adjustable from 0° – 9° and a maximum of 20° of retard can be pulled out. On top of these great features, there is also an optional start retard circuit that can be programmed to retard the timing 5°, 10°, 15° or 20° during cranking. The Digital Multi-Retard can be used on 4, 6 or 8-cylinder engines and must be used with an MSD Ignition Control.
Features:
- Four stages of retard
- Magnetic pick-up compensation circuit
- Adjustable start retard
