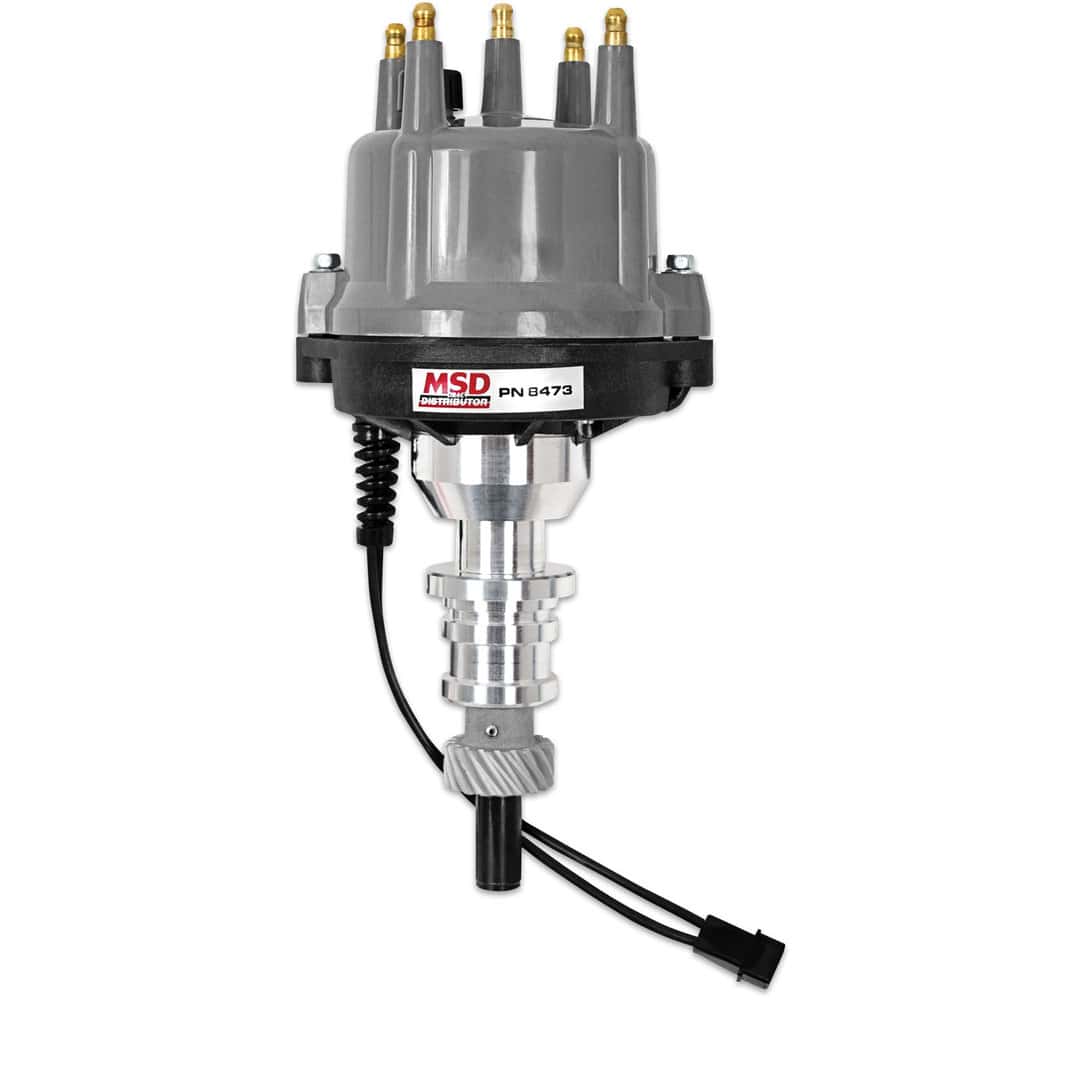

Ford 2.3L Billet Distributor

$570.00

Fits Fords 4-cylinder 2.3L engines. Must be used with an MSD 6, 7 or 8-series ignition

SKU: 8473 Category:

Description

This distributor features an aluminum housing that is CNC-machined for closer
tolerances than any conventional cast distributor. Plus you get an adjustable
mechanical advance which can be easily tailored to any engine by changing the stop bushing and advance springs.

Triggering the MSD Ignition system is the same high-output magnetic pickup
that is used in our racing distributors. This pickup produces an extremely
accurate trigger signal and is maintenance-free

Features:

  • CNC machined billet aluminum housing and Dupont Rynite base
  • Must be used with an MSD Ignition Control
  • Supplied with a cap with HEI style terminals and rotor
  • Nylon pads ensure smooth operation of the advance weights
  • Advance weight pins are staked and tig welded to the plate
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • CNC machined billet aluminum housing and Dupont Rynite base
  • Supplied springs and stop bushings to create a variety of timing curves
  • Easy-to-adjust mechanical advance is mounted on top of the shaft
  • No CARB Exemption Order Number

Additional information

Weight 4.19 lbs
Dimensions 18.2 × 7 × 6.9 in
Brand

Emission Code

Product Type

Warranty

Color

Gray

Engine

Distributor Type

Magnetic Pickup

Gear

Cast Iron
