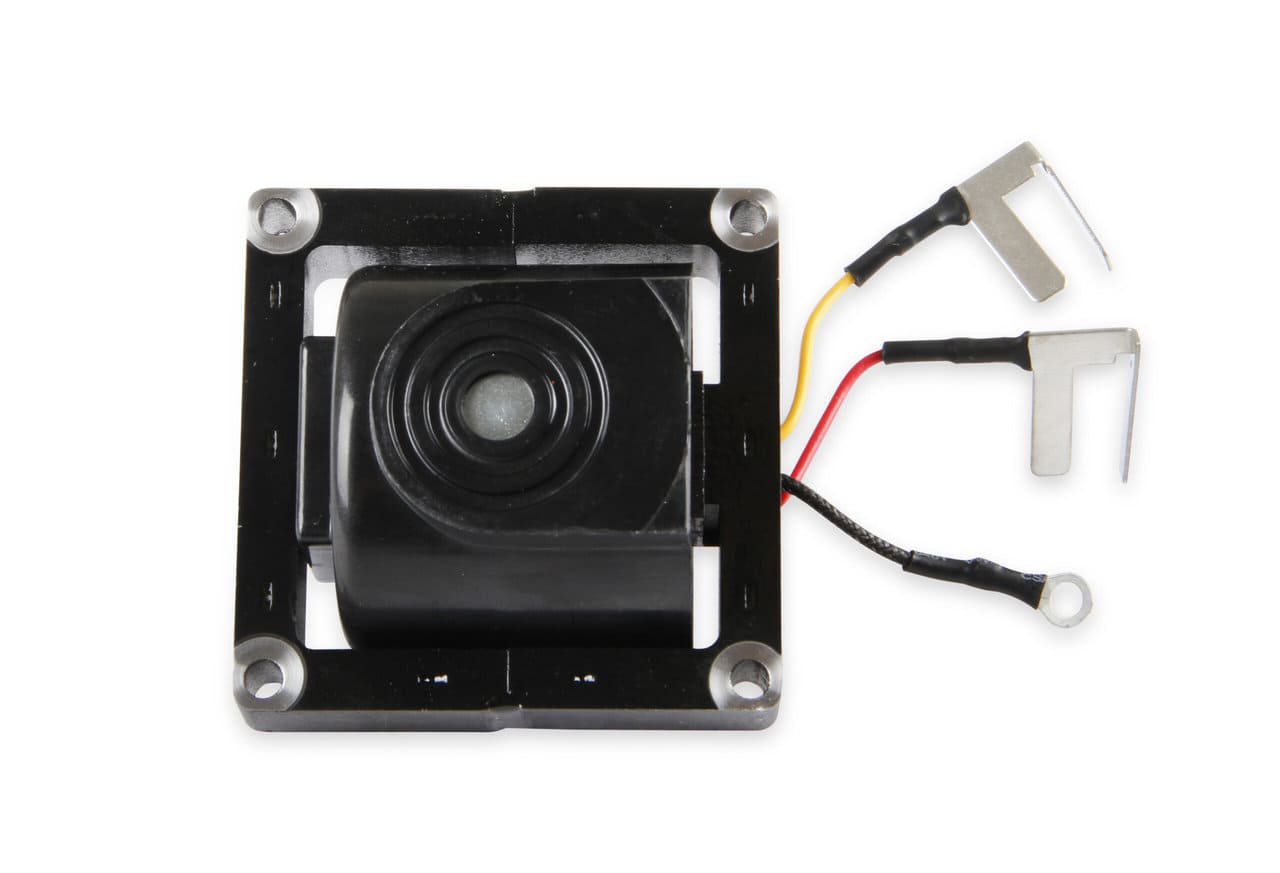

MSD Ignition Coil – HEI

$126.00

For GM HEI Distributors

SKU: 8225 Category: Tags: , , ,

Description

HEI owners now have a choice to replace their stock coil with the MSD High Energy Unitized Coil for GM HEI Distributors. This coil is a direct replacement of the stock coil and offers increased spark energy when used with the MSD HEI Module, PN 83647.

The MSD HEI Coil is designed for use with the MSD High Output HEI Module, PN 8364. It will work with stock ignition modules, but for maximum output use the MSD HEI Module.

Features:

  • Direct performance replacement for GM HEI coil-in-cap distributors
  • 70:1 turns ratio and lower primary resistance produce high voltage output
  • Full power sparks to 9,000 RPM when used with 83647 MSD HEI Module
  • Recommended for use with MSD HEI Module PN 83647
  • CARB E.O. Approved

Additional information

Weight 1.84 lbs
Dimensions 8.15 × 6 × 3.25 in
Brand

Emission Code

Product Type

Warranty

Spark duration

200 uS

Inductance

3.5 mH

Maximum Voltage

000 Volts, 42

Peak Current

200 mA

Primary Resistance

.31 OHMs

Secondary Resistance

9.2K OHMs

Turns Ratio

70:01:00
